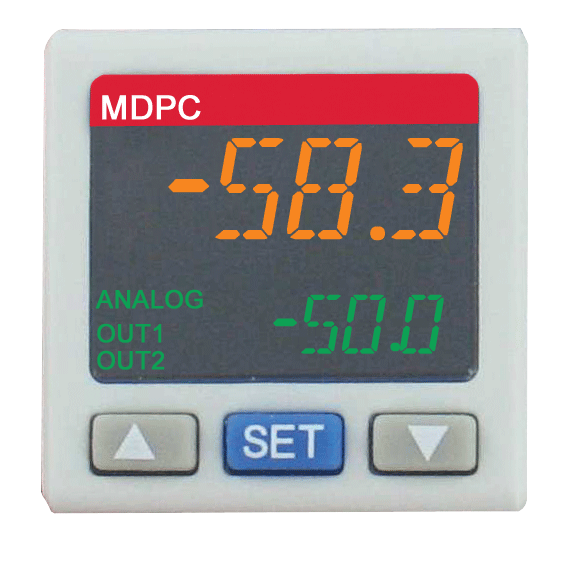

DWYER微型数字压力控制器MDPC

简要描述:

免费咨询:029-86698996

发邮件给我们:13891958005@163.com

分享到: 1
在线留言

MDPC微型数字压力控制器‰小型、轻型、6个可选压力单元‰系列MDPC微型数字压力控制器是一种体积小、重量轻的纤薄气体压力传感器。该压力控制器支持多种安装方式,测量精度高。这种小型控制器具有良好的稳定性、高的抗冲击性和抗振动性。MDPC还具有良好的过载能力和耐热性。它可以应用于许多行业,如:高科技电子,一般加工,食品包装和自动装配。MDPC具有6个用户可选择的压力单位和一个大的LED三色显示屏,带有可选择的颜色选项,便于阅读。更换单位很简单,通过使用随附的单位标签,显示的压力单位变得非常清晰。快速参数复制功能使复制参数到其他MDPC压力控制器毫不费力。钥匙锁定模式还可防止对参数进行任何不必要的更改,这可能会对操作产生影响。这种压力控制器的另一个特点是它能够同时检测正压和负压。MDPC有NPN、PNP、模拟电压或电流输出控制模式。

Service:Non-corrosive gas.

Wetted Materials:Brass with nickel plating.

Housing Materials:Polycarbonate, polybutylene terephthalate.

Accuracy:±3% of full range.

Pressure Limits:MDPC-1: 29 psi (200 kPa); MDPC-2: 217.6 psi (1500 kPa).

Display:2-line LCD display, 4 digits for measured value and 3.5 digits for setup display.

Power Requirements:12 to 24 VDC ±10% no isolations.

Power Consumption:40 mA max.; Current output type 60 mA max.

Process Connections:1/8" NPT, inner connection M5, for 1/8" PT contact factory.

Weight:1.3 oz (36.85 g).

Agency Approvals:CE: MDPC-121, MDPC-122, UL.

SWITCH SPECIFICATIONS:

Switch Type:NPN or PNP

Electrical Rating:100 mA @ 30 VDC.

Response Time:Programmable to 2ms, 4ms, 10ms, 30ms, 50ms, 100ms, 250ms, 500ms, 1000ms or 5000ms.

Display Cycle:Programmable to 100ms, 250ms, 500ms or 1000ms.

TRANSMITTER SPECIFICATIONS:

Output Signal:1 to 5 V: Minimum output load resistance 1000 Ω; 4 to 20 mA: Maximum output load resistance 400 Ω.

Zero and Span Adjustments:Menu scalable within the range.

Model Description
MDPC-111 Pressure controller, range -14.5 psi to 14.5 psi, NPN output, 4 to 20 mA, outer connection 1/8" PT, inner connection M5.
MDPC-121 Pressure controller, range -14.5 psi to 14.5 psi, NPN output, 1 to 5 V, outer connection 1/8" PT, inner connection M5.
MDPC-131 Pressure controller, range -14.5 psi to 14.5 psi, PNP output, 4 to 20 mA, outer connection 1/8" PT, inner connection M5.
MDPC-132 Pressure controller, range -14.5 psi to 14.5 psi, PNP output, 4 to 20 mA, outer connection 1/8" NPT, inner connection M5.
MDPC-141 Pressure controller, range -14.5 psi to 14.5 psi, PNP output, 1 to 5 V, outer connection 1/8" PT, inner connection M5.
MDPC-211 Pressure controller, range -14.5 psi to 145 psi, NPN output, 4 to 20 mA, outer connection 1/8" PT, inner connection M5.
MDPC-212 Pressure controller, range -14.5 psi to 145 psi, NPN output, 4 to 20 mA, outer connection 1/8" NPT, inner connection M5.
MDPC-221 Pressure controller, range -14.5 psi to 145 psi, NPN output, 1 to 5 V, outer connection 1/8" PT, inner connection M5.
MDPC-231 Pressure controller, range -14.5 psi to 145 psi, PNP output, 4 to 20 mA, outer connection 1/8" PT, inner connection M5.
MDPC-241 Pressure controller, range -14.5 psi to 145 psi, PNP output, 1 to 5 V, outer connection 1/8" PT, inner connection M5.
MDPC-242 Pressure controller, range -14.5 psi to 145 psi, PNP output, 1 to 5 V, outer connection 1/8" NPT, inner connection M5.
