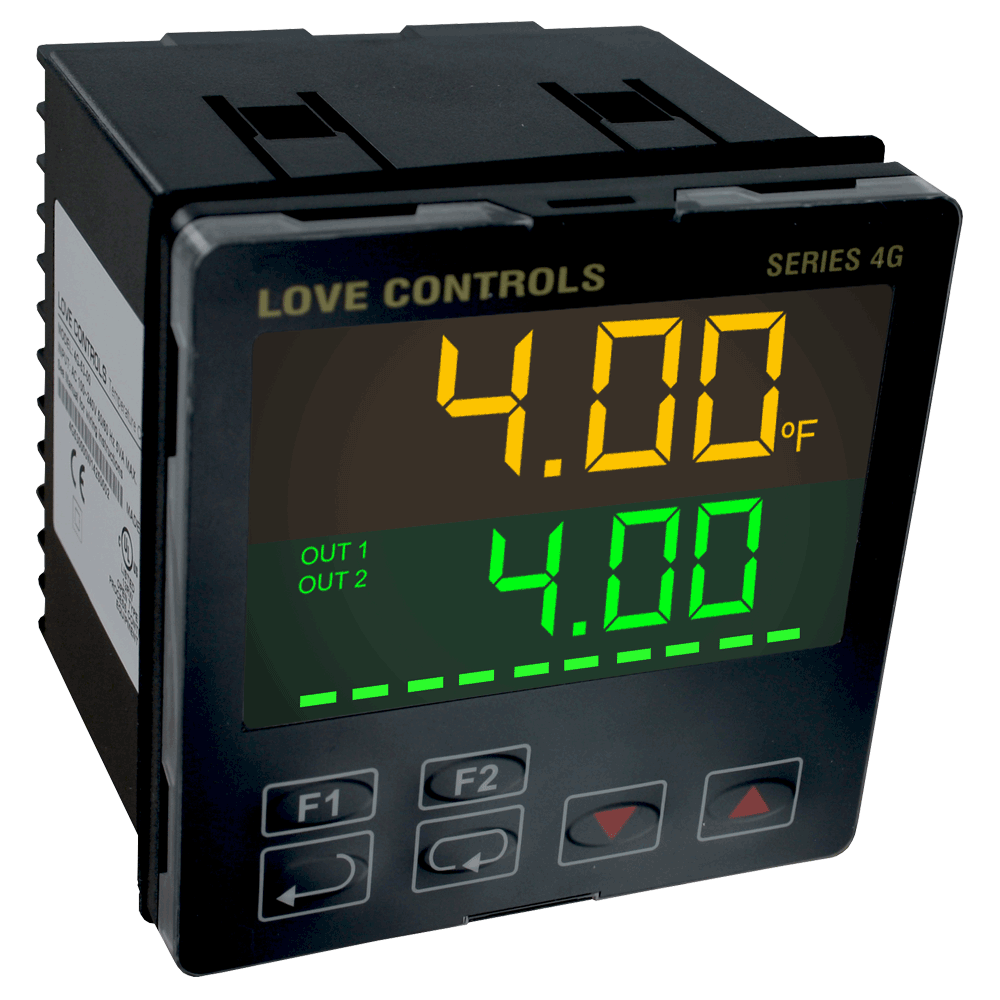

The SERIES 16G, 8G, AND 4G Temperature/Process Loop Controllers allow for monitoring and control of temperature or process conditions. The controller features two independent control outputs for dual loop control using on/off, auto-tune or self-tune PID, fuzzy logic, or manual control methods. RS-485 interface is included with Modbus® communication protocol, for easy bench-top configuration or integration with a PLC or data control system.

ModelDescription

16G-23-111/16 DIN temperature/controller, volt pulse/relay RS485, 2 event inputs

16G-23-311/16 DIN temperature/controller, volt pulse/relay RS485, 1 event input, temp retransmission

16G-23-321/16 DIN temperature/controller, volt pulse/relay RS485, temp retransmission, remote setpoint

16G-33-111/16 DIN temperature/controller, relay/relay RS485, 2 event inputs

16G-33-311/16 DIN temperature/controller, relay/relay RS485, 1 event input, temp retransmission

16G-33-321/16 DIN temperature/controller, relay/relay RS485, temp retransmission, remote setpoint

16G-53-111/16 DIN temperature/controller, current/relay, RS485, 2 event inputs

16G-53-311/16 DIN temperature/controller, current/relay, RS485, 1 event input, temp retransmission

16G-53-321/16 DIN temperature/controller, current/relay, RS485, temp retransmission, remote setpoint

16G-63-111/16 DIN temperature/controller, linear voltage/relay, RS485, 2 event inputs

16G-63-311/16 DIN temperature/controller, linear voltage/relay, RS485, 1 event input, temp retransmission

16G-63-321/16 DIN temperature/controller, linear voltage/relay, RS485, temp retransmission, remote setpoint

Specifications

Inputs:

Thermocouple, RTD, DC voltages or DC current.

Display:

Process value: 4 digit, 0.47" H (12mm), orange LCD; Set point value: 4 digit, 0.47" H (12mm), green LCD.

Accuracy:

± 1.8°F plus ±0.3% of span (±1°C plus ±0.3% of span) at 77°F (25°C) after 20 minutes warm up.

Power Requirements:

100 to 240 VAC -20/+8%, 50/60 Hz; Optional 24 VDC, ±10%.

Power Consumption:

5 VA max.

Operating Temperature:

32 to 122°F (0 to 50°C).

Storage Temperature:

-42 to 150°F (-20 to 65°C).

Memory Backup:

Nonvolatile memory.

Control Output Ratings:

Relay: SPST, 5 A @ 250 VAC resistive; Voltage pulse: 12 V (max. 40 mA); Current: 4 to 20 mA; Linear voltage: 0 to 10 V.

Alarm Relay Ratings:

3 A @ 250 VAC resistive.

Communication:

RS-485 Modbus® ASCII/RTU communication protocol.

Weight:

9 oz (255g).

Front Panel Rating:

IP66.

Agency Approvals:

CE, cULus.
