Dwyer 2000-HA高精度差压表

简要描述：

Dwyer 2000高精度差压表

免费咨询：029-86698996

发邮件给我们：13891958005@163.com

分享到： 1

Dwyer 2000-HA高精度差压表的参数

* 精度1% 。

* 镜像缩放叠加消除视差误差

* 六点校正证书

* IP67防护，全方位防护，可适合灰尘和浸水情况

* 可选耐腐蚀刷304 SS 边框

FEATURES/BENEFITS

• Accurate within 1%

• Mirrored scale overlay eliminates parallax error

• Six point calibration certificate included

• IP67 - Fully protects against dust and immersion

• Optional corrosion resistant brushed 304 SS bezel

APPLICATIONSDwyer 2000-HA高精度差压表

• Clean room positive pressure indication

• Filter monitoring

• Air velocity with Dwyer pitot tube

• Blower vacuum monitoring

• Fan pressure indication

• Duct, room, or building pressures

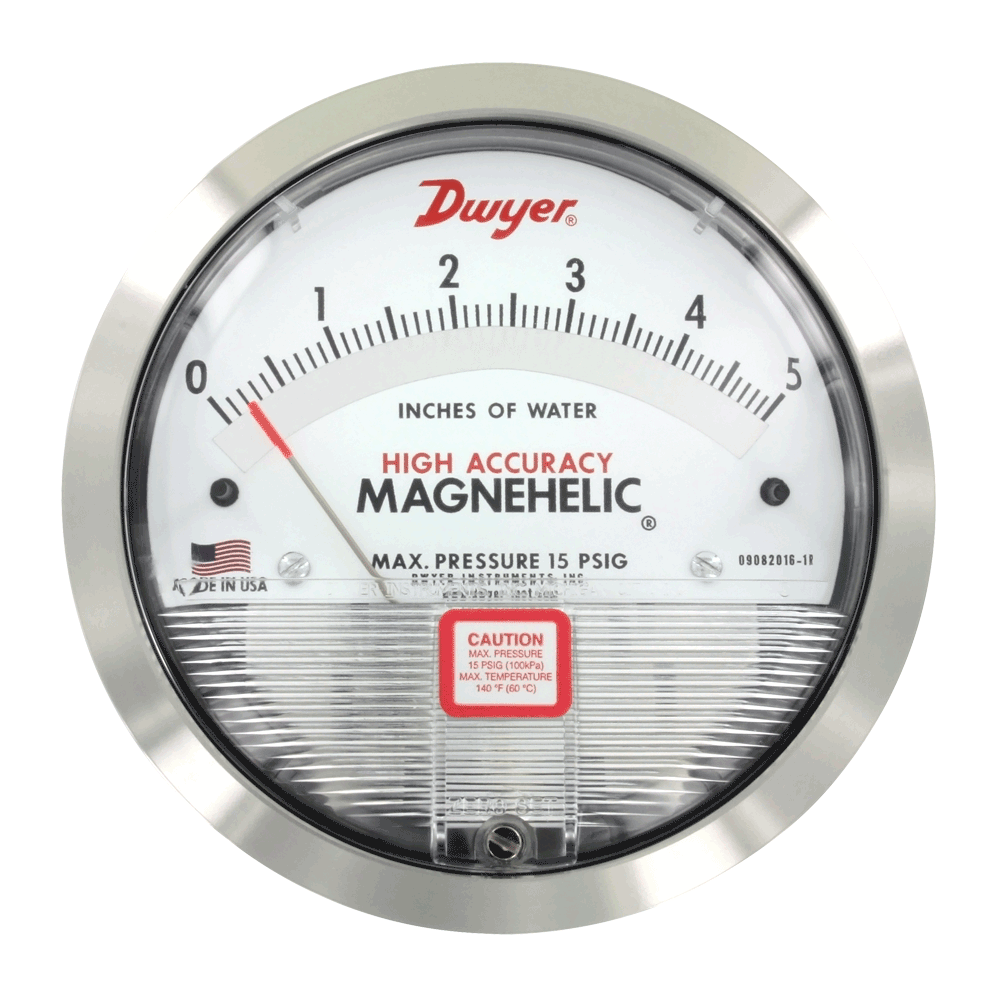

Note: Shown with optional -SS bezel

DESCRIPTIONDwyer 2000-HA高精度差压表

The SERIES 2000-HA High Accuracy Magnehelic® Gage is twice as accurate as the standard Magnehelic® gage. The well-engineered High Accuracy Magnehelic® Gage offers a mirrored overlay as standard in order to eliminate any parallax error when taking measurements. A six point calibration certificate is included with each high accuracy model. The rugged IP67 casing helps fully protect against dust and water ingress. The redesigned corrosion resistant brushed 304 stainless steel bezel option offers a clean tapered design, yet minimizes the possibility of any dust accumulation on the edges.

SPECIFICATIONS

Service	Air and non-combustible, compatible gases (natural gas option available). Note: May be used with hydrogen.Order a Buna-N diaphragm. Pressures must be less than 35 psi.
WettedMaterials	Consult factory.
Housing	Die cast aluminum case and bezel with acrylic cover. Exterior finish is coated gray to withstand 168 hour saltspray corrosion test.
Accuracy	±1% FS (±1.5% on -0, -100PA, -125PA, -10MM and ±2% on -00, -60PA, -6MM ranges) throughout range at70°F (21.1°C).
Pressure Limits	-20 in Hg to 15 psig (-0.677 bar to 1.034 bar).
Overpressure	Relief plug opens at approximately 25 psig (1.72 bar), standard gages only. See Overpressure Protection note oncatalog page.
Temperature Limits	20 to 140°F (-6.67 to 60°C).
Size	4" (101.6 mm) diameter dial face.
MountingOrientation	Diaphragm in vertical position. Consult factory for other position orientations.
ProcessConnections	1/8" female NPT duplicate high and low pressure taps – one pair side and one pair back.
Weight	1 lb 2 oz (510 g).
StandardAccessories	Two 1/8" NPT plugs for duplicate pressure taps, two 1/8" pipe thread to rubber tubing adapters, and threeflush mounting adapters with screws.
AgencyApprovals	Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
