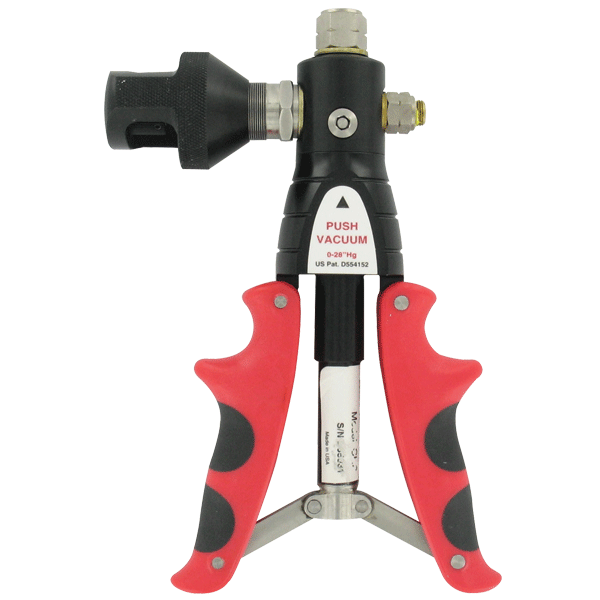

The Series PCHP Pneumatic Hand Pump comfortably sources pressure and vacuum to check calibration of gages, switches, transmitters, and recorders. The contoured cushion handles provide extra comfort while preventing the pump from sliding. The oversized check valve provides smooth operation throughout the output range. The dual o-rings on all pistons ensure zero leakage.
ModelDescription
PCHP-1Pneumatic hand pump, range 600 psi.
PCHP-1KPneumatic hand pump, range 600 psi, with hose kit.
PCHP-HKHigh pressure hose for PCHP-1 hand pump.
Specifications
Media:
Air and compatible gases only.
Output Ranges:
0-28" Hg to 600 psi (-0.945 to 40 bar).
Process Connection:
1/4" NPT/BSP.
Gage Connection:
1/8" NPT/BSP.
Materials:
Stainless steel fittings, anodized aluminum housing, plastic/rubber handles, and nitrile o-rings.
Weight:
2 lb (0.91 kg).
