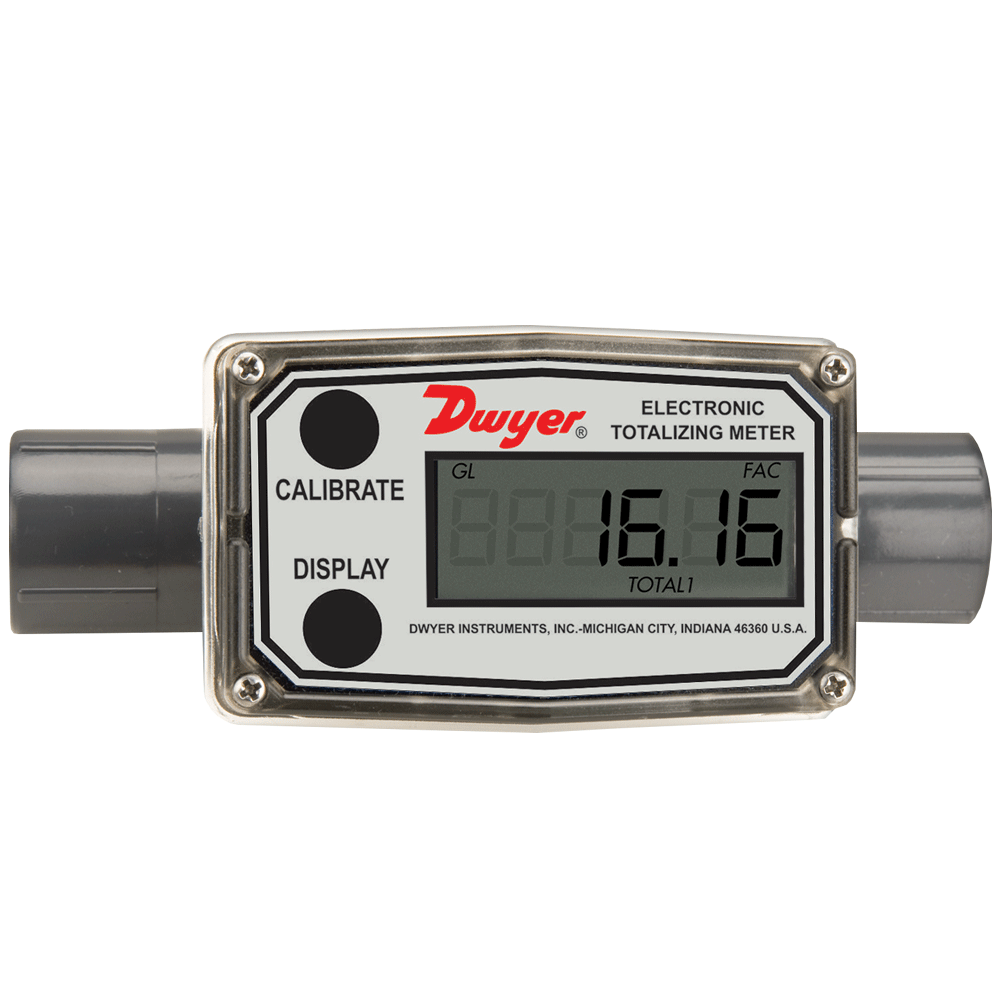

Dwyer TTMP电子累计流量计

简要描述:

Dwyer TTMP电子累计流量计

免费咨询:029-86698996

发邮件给我们:13891958005@163.com

分享到: 1
在线留言

Batch or Cumulative Totals, Easy-to-Read LCD Display

THE SERIES TTMP PVC ELECTRONIC TOTALIZING METERS offer batch and cumulative flow totals in a PVC construction for 1/2" to 4" pipe sizes with spigot, NPT or flange connections.

Service:

Compatible fluids.

Flow Range:

See flow chart on catalog page.

Wetted Materials:

1/2 to 2": PVC housing, ceramic bearings, tungsten carbide shaft, PVDF rotor, 316 stainless steel rings; 3 to 4": PVC housing, PEEK® bearings, 316 stainless steel shaft & thrust washers, Acetal rotor & nose cone, ferrite signal generator.

Accuracy:

1/2" to 2": ±3% of reading; 3" and 4": ±2% of reading.

Batch Total Maximum:

999,999.

Cumulative Total Maximum:

99,999,900.

Temperature Limits:

Process: 32 to 140°F (0 to 60°C); Storage: -40 to 158°F (0 to 70°C).

Pressure Limits:

1/2" to 2": 225 psig (15 bar) @ 73°F; 3" and 4": 135 psig (9.3 bar) @ 73°F.

Display:

6-digit LCD, 3/4" H.

Process Connections:

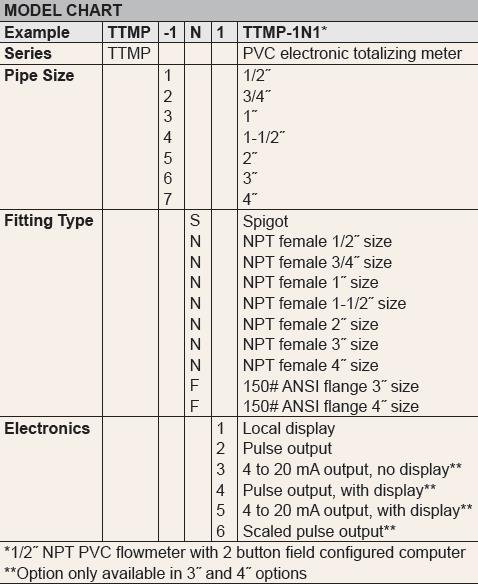

See model chart on catalog page.

Power Requirements:

TTMP-XX1: (2) 3V primary lithium metal batteries, installed functional, user replaceable; TTMP-XX3 to TTMP-XX6: (1) 9V primary lithium metal battery, installed functional, user replaceable or 7V to 30V external power.

Battery Life:

TTMP-XX1: Approximately 5 years; TTMP-XX3 to TTMP-XX6: Approximately 4 years.

Weight:

See weight chart on catalog page.

Agency Approvals:

CE.

Features

Compact modular design ideal for easy portability

Easily alternate display from flow rate, batch or cumulative totals in one low cost unit

Easy to read LCD display provides instantaneous local indication

Included batteries featuring a 5 year life span with no added costs

Immediate push button, field calibration eliminates downtime
