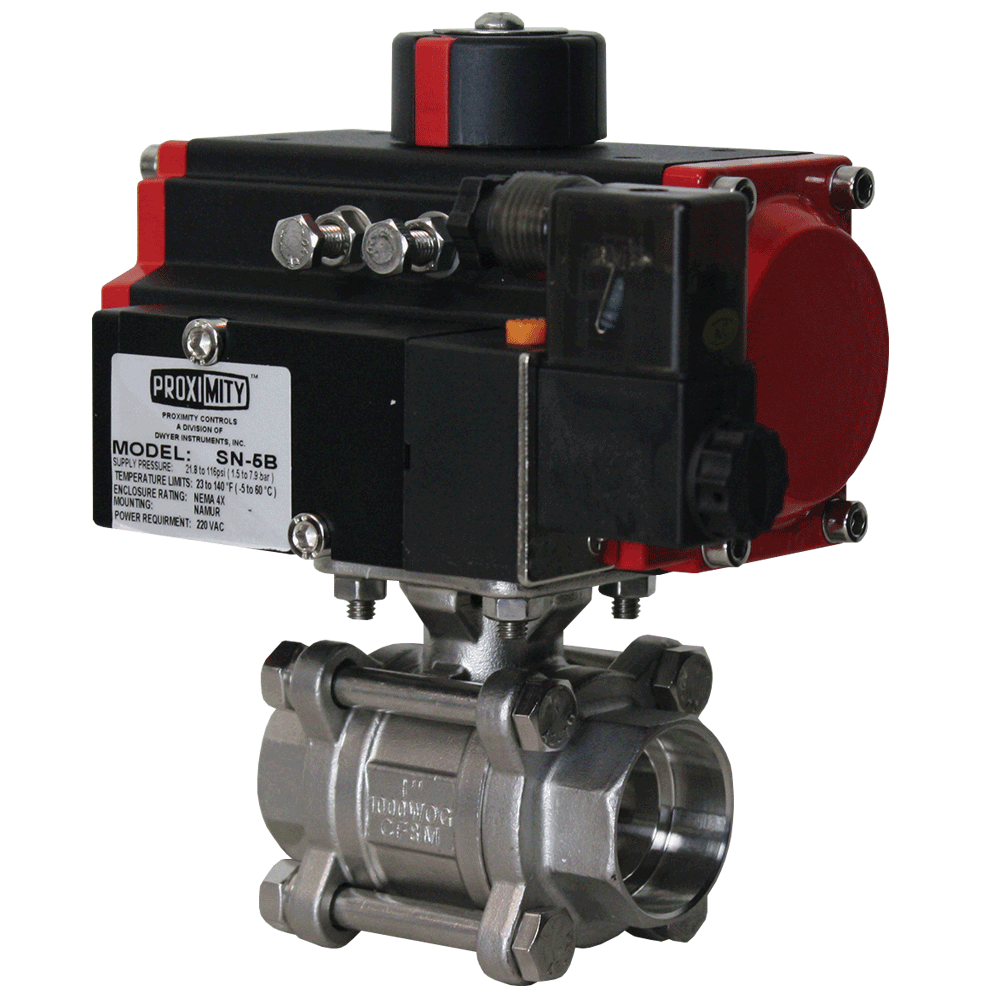

The Series WE05 offers the best possible design for socket weld ball valves. The swing out body feature and seat arrangement allow for trouble-free welding installation. The Series WE05 incorporates a full port 3-piece SS ball valve for ideal flow rates with minimal pressure drop. The valve features a blowout proof stem for added safety, reinforced PTFE seats and seals for longer life, and a 316 SS (ASTM CF8M) ball for better performance. Actuators are directly mounted creating a compact assembly for tight spaces. Limit switches can be mounted directly to the valves, allowing for remote position indication. The Series WE05 can be configured with either an electric or pneumatic actuator. Electric actuators are available in weatherproof or explosion-proof, a variety of supply voltages and two-position modulating control. Two-position actuators use the supply voltage to drive the valve open or close, while the modulating actuator accepts a 4 to 20 mA input for valve positioning. Actuators feature thermal overload protection and a permanently lubricated gear train. The pneumatic double acting actuator uses an air supply to drive the valve open and closed. The actuator has two supply ports with one driving the valve open and the other driving the valve closed. Spring return pneumatic actuators use the air supply to open the valve and internally loaded springs return the valve to the closed position. Also available is the SV3 solenoid valve to electrically switch the air supply pressure between the air supply ports for opening and closing the valve. Actuators are constructed of anodized and epoxy coated aluminum for years of corrosion free service.



Service:Compatible liquids and gases.

Body:3-piece.

Line Sizes:1/2 to 3".

End Connections:Socket weld.

Pressure Limits:Pressure Limits: 20" Hg to 1000 psi (-0.7 to 69 bar), up to 250°F.

Wetted Materials:Body and ball: 316 SS (CF8M); Stem: 316 SS; Seat: RTFE/PTFE; Seal, Washer, and Packing: PTFE.

Temperature Limits:-20 to 392°F (-29 to 200°C).

Other Materials:O-ring: Fluoroelastomer; Handle: 304 SS; Washer: 301 SS; Stem Nut, Locking Device, Gland Ring: 304 SS; Handle Sleeve: PVC.

Agency Approvals:Meets the technical requirements of EU Directive 2011/65/ EU (RoHS II).

ACTUATORS

Pneumatic “DA” and “SR” Series

Type:DA series is double acting and SR series is spring return (rack and pinion).

Normal Supply Pressure:DA: 40 to 115 psi (2.7 to 7.9 bar); SR: 80 psi (5.5 bar).

Maximum Supply Pressure:120 psi (8.6 bar).

Air Connections:DA01: 1/8" female NPT; DA02 to DA05: 1/4" female NPT; SR02 to SR07: 1/4" female NPT.

Housing Material:Anodized aluminum body and epoxy coated aluminum end caps.

Temperature Limits:-40 to 176°F (-40 to 80°C).

Accessory Mounting:NAMUR standard.



Electric “TD” and “MD” Series

Power Requirements:110 VAC, 220 VAC, 24 VAC or 24 VDC (MD models not available in 24 VDC).

Power Consumption:See instruction manual.

Cycle Time (per 90°):TD01: 4 s; MD01: 10 s; TD02 and MD02: 20 s; TD03 and MD03: 30 s.

Duty Rating:85%.

Enclosure Rating:NEMA 4X (IP67).

Housing Material:Powder coated aluminum.

Temperature Limits:-22 to 140°F (-30 to 60°C).

Electrical Connection:1/2" female NPT.

Modulating Input:4 to 20 mA.

Standard Features:Manual override, position indicator, and TD models come with two limit switches.



Electric “TI” and “MI” Series

Power Requirements:110 VAC, 220 VAC, 24 VAC or 24 VDC.

Power Consumption:See instruction manual.

Cycle Time (per 90°):See instruction manual.

Duty Rating:See instruction manual.

Enclosure Rating:NEMA 7, designed to meet hazardous locations: Class I, Group C & D; Class II, Group E, F & G; Division I & II.

Housing Material:Powder coated aluminum.

Temperature Limits:-40 to 140°F (-40 to 60°C).

Electrical Connection:1/2" female NPT.

Modulating Input:4 to 20 mA.

Standard Features:Position indicator and two limit switches.

Model Chart

WE05-X-XXX-OPT   WE05 3-PIECE PNEUMATIC SOCKET WELD END SST BALL VALVE

        1ST SYMBOL (1ST X) RANGE

           CHD00   1/2 IN HAND OPERATED
           DHD00   3/4 IN HAND OPERATED
           EHD00   1 IN HAND OPERATED
           FHD00   1-1/4 IN HAND OPERATED
           GHD00   1-1/2 IN HAND OPERATED
           HHD00   2 IN HAND OPERATED
           IHD00   2-1/2 IN HAND OPERATED
           JHD00   3 IN HAND OPERATED
           CDA01   1/2 IN DOUBLE ACTING
           DDA01   3/4 IN DOUBLE ACTING
           EDA02   1 IN DOUBLE ACTING
           FDA02   1-1/4 IN DOUBLE ACTING
           GDA03   1-1/2 IN DOUBLE ACTING
           HDA03   2 INDOUBLE ACTING
           IDA04   2-1/2 IN DOUBLE ACTING
           JDA05   3 IN DOUBLE ACTING
           CSR02   1/2 IN SPRING RETURN
           DSR02   3/4 IN SPRING RETURN
           ESR03   1 IN SPRING RETURN
           FSR03   1-1/4 INSPRING RETURN
           GSR04   1-1/2 IN SPRING RETURN
           HSR05   2 IN SPRING RETURN
           ISR07   2-1/2 IN SPRING RETURN
           JSR07   3 IN SPRING RETURN

        2ND SYMBOL (2ND X) SOLENOID (PNEUMATIC ACTUATOR ONLY)
           N       NO SOLENOID
           A       NEMA 4X NAMUR SOLENOID

        3RD SYMBOL (3RD X) SOLENOID VOLTAGE(PNEUMATIC ACTUATOR ONLY)
                   NO SYMBOL FOR ELECTRIC ACTUATORS
           N       NO SOLENOID
           A       110 VAC
           B       220 VAC
           C       24 VAC
           D       24 VDC
           E       12 VDC

        4TH SYMBOL (4TH X) POSITIONERS AND SWITCHES
                   NO SYMBOL FOR ELECTRIC ACTUATORS
           00      NONE
           01      42ADO EXP LIMIT SWITCH
           02      45VDO EXP POSITION TRANSMITTER
           03      42ADO-B ATEX LIMIT SWITCH
           04      42ADO-IE IECEX LIMIT SWITCH
           06      QV-210101 POLY LIMIT SWITCH
           07      VPS AND P1 PROX SWITCH
           08      265ER-D5 POSITIONER
           09      285ER-D5 SMART POSITIONER

        OPTIONS (OPT) (PNEUMATIC ACTUATORS ONLY)
                   NO SYMBOL FOR ELECTRIC ACTUATORS
           -NO     FAIL OPEN SPRING RETURN ACTUATOR

WE05-X-XXX-OPT   WE05 3-PIECE ELECTRIC SOCKET WELD END SST BALL VALVE

        1ST SYMBOL (1ST X) RANGE

           CTD01   1/2 IN ELECTRIC TWO-POSITION
           DTD01   3/4 IN ELECTRIC TWO-POSITION
           ETD01   1 IN ELECTRIC TWO-POSITION
           FTD01   1-1/4 IN ELECTRIC TWO-POSITION
           GTD02   1-1/2 IN ELECTRIC TWO-POSITION
           HTD02   2 IN ELECTRIC TWO-POSITION
           ITD03   2-1/2 IN ELECTRIC TWO-POSITION
           JTD03   3 IN ELECTRIC TWO-POSITION
           CMD01   1/2 IN ELECTRIC MODULATING
           DMD01   3/4 IN ELECTRIC MODULATING
           EMD01   1 IN ELECTRIC MODULATING
           FMD01   1-1/4 IN ELECTRIC MODULATING
           GMD01   1-1/2 IN ELECTRIC MODULATING
           HMD02   2 IN ELECTRIC MODULATING
           IMD03   2-1/2 IN ELECTRIC MODULATING
           JMD03   3 IN ELECTRIC MODULATING
           CTI01   1/2 IN EXP ELECTRIC TWO-POSITION
           DTI01   3/4 IN EXP ELECTRIC TWO-POSITION
           ETI02   1 IN EXP ELECTRIC TWO-POSITION
           FTI02   1-1/4 IN EXP ELECTRIC TWO-POSITION
           GTI03   1-1/2 IN EXP ELECTRIC TWO-POSITION
           HTI04   2 IN EXP ELECTRIC TWO-POSITION
           ITI05   2-1/2 IN EXP ELECTRIC TWO-POSITION
           JTI05   3 IN EXP ELECTRIC TWO-POSITION
           CMI01   1/2 IN EXP ELECTRIC MODULATING
           DMI01   3/4 IN EXP ELECTRIC MODULATING
           EMI02   1 IN EXP ELECTRIC MODULATING
           FMI02   1-1/4 IN EXP ELECTRIC MODULATING
           GMI03   1-1/2 IN EXP ELECTRIC MODULATING
           HMI04   2 IN EXP ELECTRIC MODULATING
           IMI05   2-1/2 IN EXP ELECTRIC MODULATING
           JMI05   3 IN EXP ELECTRIC MODULATING

2ND SYMBOL (2ND X) ACTUATOR VOLTAGE(ELECTRIC ACTUATOR)
           A       110 VAC
           B       220 VAC
           C       24 VAC
           D       24 VDC
