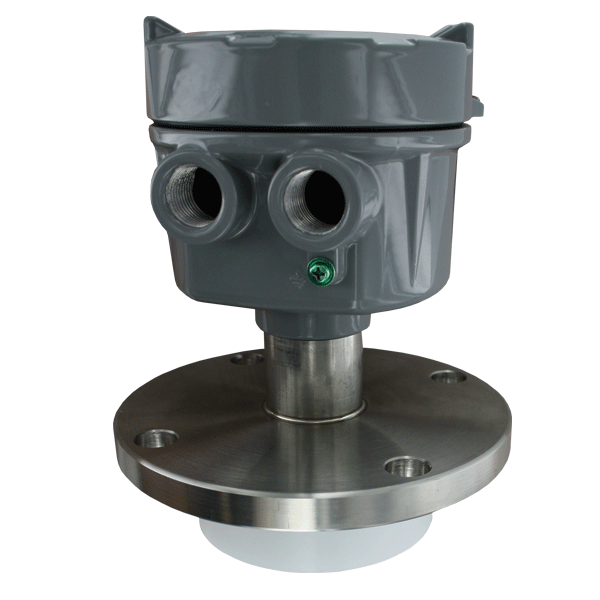

PROXIMITY电容式液位开关FCLS

简要描述:

PROXIMITY电容式液位开关FCLS

免费咨询:029-86698996

发邮件给我们:13891958005@163.com

分享到: 1
在线留言

FCLS电容式液位开关是液体和散装固体液位测量的理想选择,用于触发报警或关闭填充入口。 探头的设计安装在空间有限或物料流动或堆积会损坏探头的地方。 无运动部件,无卡死、无磨损、无损坏、无维护。 标准配置IP65外壳,最大压力限制285 psi (19.7 bar)。

Service:Liquids, powder, and bulk materials compatible with wetted materials.

Wetted Materials:304 SS.

Insulated Materials:PTFE.

Temperature Limits:

Ambient: -4 to 140°F (-20 to 60°C);

Process: -4 to 176°F (-20 to 80°C).

Pressure Limit:285 psi (19.7 bar).

Power Requirements:110 or 220 VAC.

Power Consumption:2 W.

Enclosure:Aluminum, painted.

Enclosure Rating:IP65.

Switch Type:SPDT.

Electrical Rating:3 A @ 250 VAC.

Electrical Connections:Screw terminals.

Conduit Connection:2 x 1/2" female NPT.

Process Connection:2.5" - x 5 kg/cm2 JIS flange.

Mounting Orientation:Side mount.

Fail Safe:Selectable fail high or fail low.

Adjustable Sensitivity:1 to 20 pF.

Time Delay:

0 to 6 s.Weight:7.1 lb (3.2 kg).

Model Description
FCLS-01 Flush capacitance level switch.
